商品描述

詳細規格：

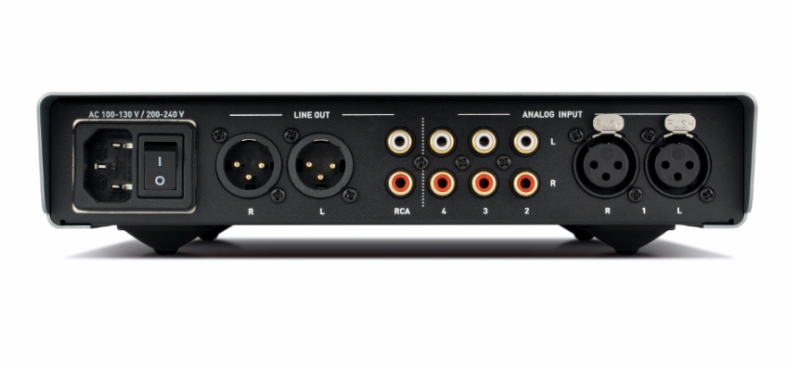

Inputs:

1 x Phono Stage

2 x Analog Stereo RCA

1 x Analog Stereo XLR

Outputs:

1 x 6.3mm headphones out

1 x pair of stereo RCA out

1 x pair of stereo XLR out

Phono Stage:

Input resistance: 32K ohm / 47K ohm / 100K ohm

Input capacitance: 100 pF / 220 pF / 320 pF

MM Input Sensitivity: 4.0 mV @ 1KHz

GAIN: MM input to LINE output ( Vol./Max. ) => 50dB @ 1KHz

PRE Stage:

Input resistance: 20K ohm

Output resistance: 10 ohm

THD+N: 0.0004% @ 7.5V Vrms

S/N ratio >115dB @ 7.5V Vrms

Frequency Response: 0Hz to 50KHz ( 0.2dB ), 200KHz ( -3dB )

GAIN: LINE input to LINE output ( Vol./Max. ) => 17dB @ 1KHz

Headphone Stage:

560mW @ 32 ohm / 110mW @ 600ohm

THD+N: 0.004% @ 32 ohm / 480mW, 0.0015% @ 600 ohm / 100mW

S/N ratio >110dB @ 32 ohm / 450mW

Frequency Response: 0Hz to 50KHz ( 0.2dB ), 200KHz ( -3dB )

GAIN: LINE input to LINE output ( Vol./Max .) => 17dB @ 1KHz

Dynamic Range > 115dB

Dimensions and Weight:

Dimensions ( W x H x D ): 235 mm x 55 mm x 281 mm

Weight: 5.5 pounds ( 2.5 kg )

Worldwide AC voltage: ( 90VAC~130VAC // 210VAC~250VAC ) With Voltage Select Switch

AC Fuse: Slow-blow, T1A, 250VAC

品牌:NUPRIME

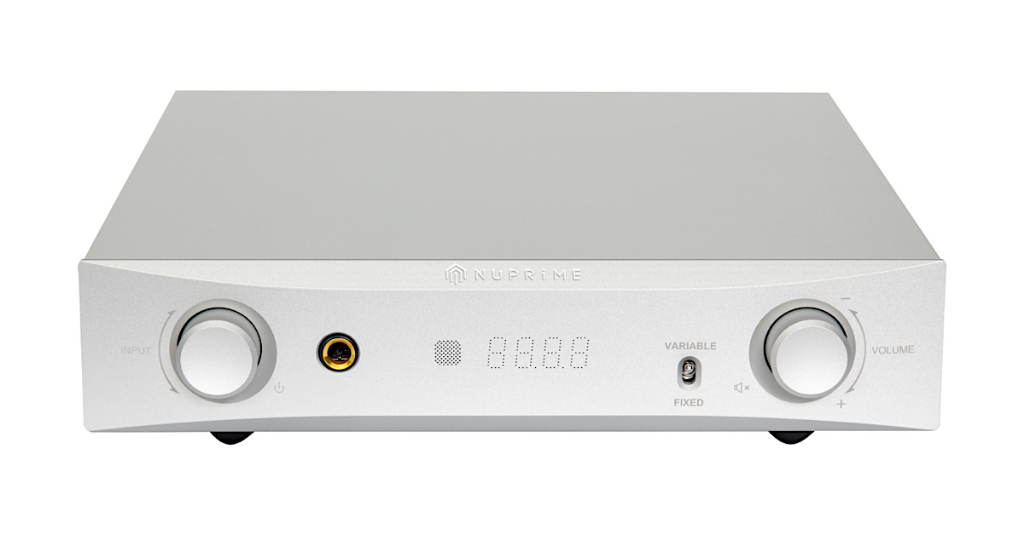

型號:PRA-9X

保固:一年

貨源:公司貨

產地:台灣

配件:原廠公告為準
