EVO-STA特點:

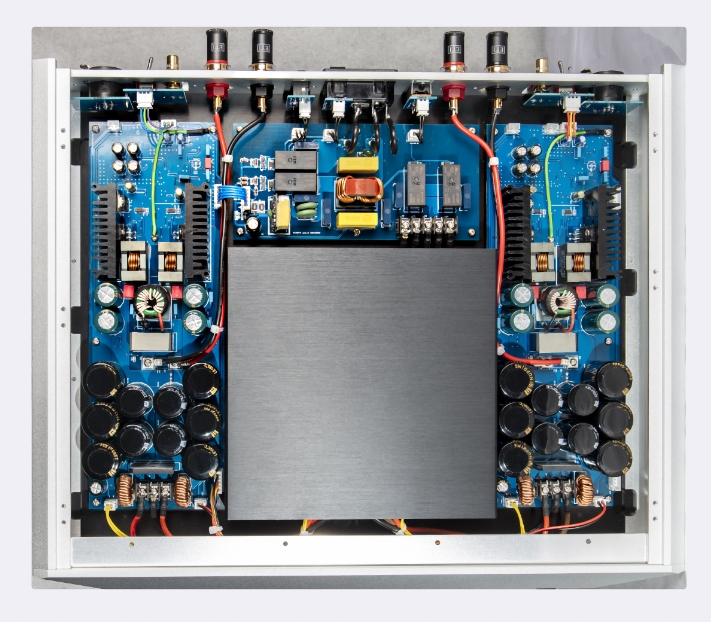

1. 左右聲道完全獨立,MONO放大電路電源電路獨立設計.

2. 550W 高功率超薄環形變壓器,一聲道26000uf,總數52000uf 電源濾波電容.60A 整流器

3. Nuprime 新一代d類電路,採用電感後回授全橋電路設計,

Thd 0.002% @5w ,2w~100w 全段失真低於0.005%.

S/N:95db @ 5W.650KHZ 開關取樣頻率.175W @8R ,250W@4R RMS 功率.

4. 採用輸入放大,D類積分振盪器採用NJRC MUSES 8820 頂級運放,”真實的聲音,直接的聲音”為極致述求.

5. 電源路徑,功率輸出路徑 全面採用40A 超高電流與低內阻端子.提升電流動態能力.

6. Triger IN/OUT提供多機同時連控

Notable Features

• NuPrime breakthrough Only Distortion Cancellation (ODC) Class D design.

• Preamp stage and Class D oscillation circuit utilizing high-end NJR MUSES8820 op-amp.

• 650KHz high-speed switching frequency allows greater resolution to be achieved.

• The 550W high-power ultra-thin toroidal transformer power supply has been enhanced to deliver cleaner and more stable power with lower noise floor. The entire power path fully adopts 40A ultra-high current and low resistance terminals. Improve current dynamic capability. Total of 52,000uF power supply filter capacitors.

• High quality copper PCB trace instead of usual cables are used to connect the power supply to the amplifier’s circuitry, maximizing power delivery.

• Hybrid Class-D technology that retains the merits of both Class-A and Class-D amplification.

• A stereo amplifier with dual mono implementation.

The Evolution STA sound characteristics can be described as:

• Wider and deeper soundstage with no loss of clarity at the greatest depth. With large scale orchestral recordings, you will be able to have a clear image of the last rows of percussion and wind, even the subtle pedal sounds! Such details are presented in a truthful manner without artificial enhancements.

• Faster dynamics with greater range

• Natural and pure due to ultra-low distortion

• Cleaner background that provides greater detail and nuances

• Class-A like warmth

Specifications:

• Power Output (RMS): 230W @ 8 Ohms , 310W @ 4 Ohms

• Power Output (peak): 270W @ 8 Ohms , 360W @ 4 Ohms

• Gain: x21

• Sensitivity (to rated power): 2Vrms

• Input Impedance: 47K Ohms

• EVO STA WATT / THD / S/N (typical) : @5W (0.0025% ,95db) , @50W (0.007% , 105db) , @100W (0.01% , 110db)

• Frequency Response: 10Hz to 50kHz (-3dB)

• Trigger IN and OUT

• Standby Power : 1.5W @ 115V outlet, 1.7W @ 230V outlet

• Idle Power : 24W @ 115V outlet, 26W @ 230V outlet

• Worldwide AC voltage: (115VAC / 230VAC) with Voltage Select Switch

• AC Fuse : Slow blow , 7A , 250VAC

• Dimension : 430mm x 372mm x 66.5mm

• Weight : 10.5Kg

• Package Dimension: 642mm x 594mm x 254mm

• Package Weight : 14Kg

• Color : Black or Silver

品牌:NUPRIME

型號:EVO STA

保固:一年

貨源:公司貨

產地:台灣

配件:無
